Understanding the Logic AND Gate in Computers

Logic gates are fundamental building blocks of digital circuits, and among them, the AND gate plays a crucial role in computing processes. Let's dive into how an AND gate works and its significance in computer operations.

What is an AND Gate?

An AND gate is a digital logic gate that implements logical conjunction – it outputs true (or high) only if all its inputs are true (or high). In simpler terms, an AND gate will output a 1 only when all the inputs are 1.

Symbol and Truth Table

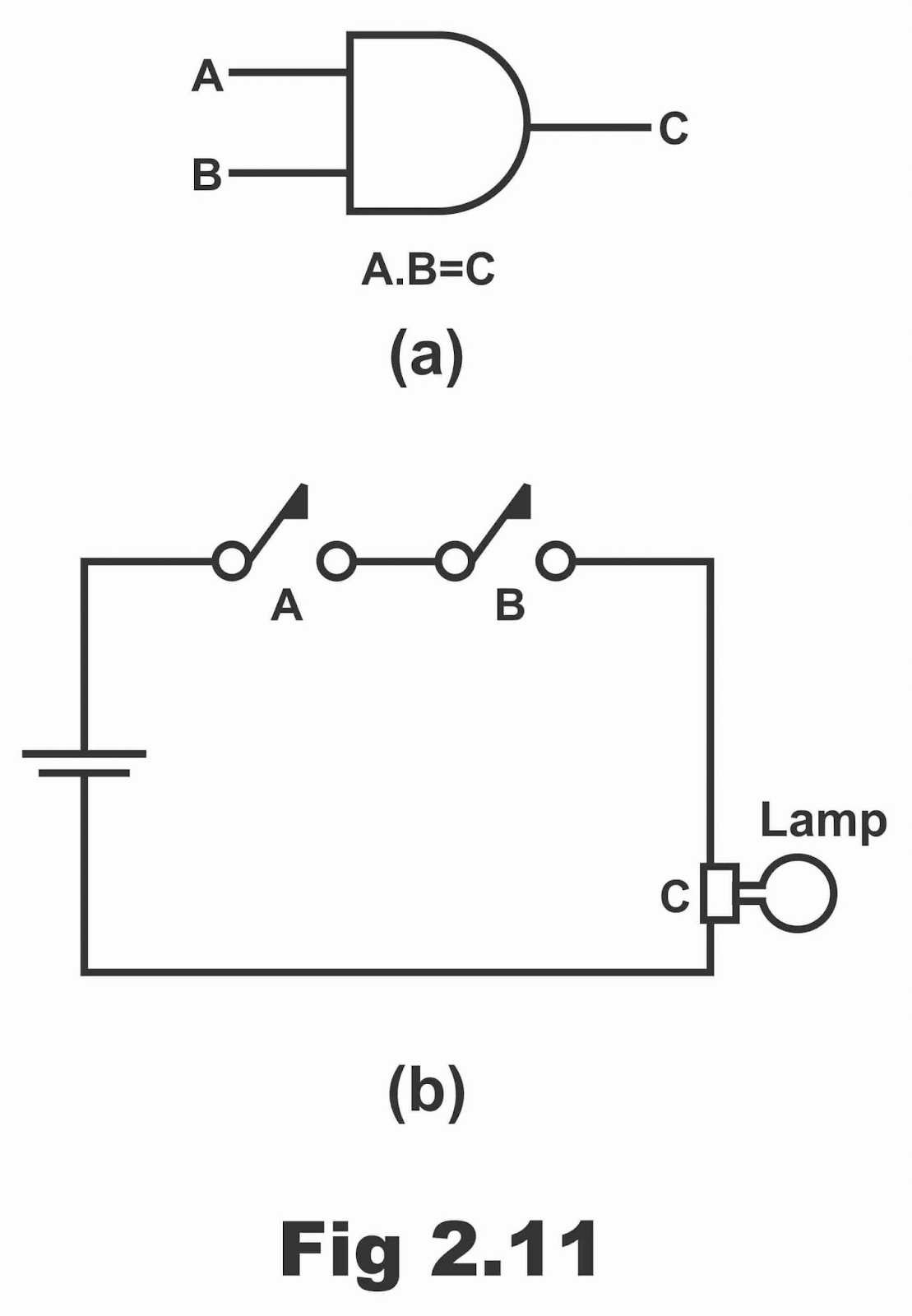

The AND gate is typically represented by a D-shaped symbol with two or more input lines on the left and one output line on the right.

Truth Table:

Input A	Input B	Output
0	0	0
0	1	0
1	0	0
1	1	1

As seen in the truth table, the output is 1 only when both Input A and Input B are 1.

How Does It Work in a Computer?

AND gates are used in various parts of a computer, from the basic CPU operations to memory and control units. Here's how they function in a few key areas:

1. Arithmetic and Logic Unit (ALU):

   • In the ALU, AND gates are used to perform bitwise operations. For instance, if we want to perform a bitwise AND operation on two binary numbers, each bit of the output is calculated by AND-ing the corresponding bits of the input numbers.

2. Conditional Operations:

   • AND gates are crucial in conditional operations, such as setting a flag only if multiple conditions are true. For example, in programming, a condition like if (A && B) checks if both A and B are true. This logical condition is directly implemented using AND gates at the hardware level.
3. Control Logic:Control units use AND gates to manage control signals. For example, an AND gate might ensure that a particular operation happens only when multiple control signals are active simultaneously.

Practical Example

Consider a scenario where you need to activate a security system only when two sensors are triggered simultaneously (e.g., a door sensor and a window sensor). This can be implemented using an AND gate:

• If both sensors are activated (Inputs are 1), the AND gate outputs 1, triggering the alarm.
• If either or both sensors are not activated (Inputs are 0), the AND gate outputs 0, and the alarm remains off.

Conclusion

AND gates are essential components in the digital logic that underpins computer operations. By understanding how AND gates function, you gain insight into the fundamental operations of computing devices, from simple conditional checks to complex processing tasks. These gates, along with other logic gates, form the backbone of all digital circuits, making modern computing possible.
